How to get 12digit code and program by OBDSTAR X300 DP PLUS

Smart Card Security Code Reading for Part of Hyundai/Kia Models（46 chip）BY OBDSTAR X300 DP PLUS

How to go through 12-digit code with MINI ND900 unit? There are actually two sorts of products have to have MINI ND900 product for 12-digit code studying :

1. the model with card slot;
2. the model with one-key start.
1. Specific method for 12digit code reading of the model with card slot(shown as Figure I): remove the card slot shell first (shown as Figure II). MINI ND900 cannot receive the vehicle signal directly for the limitation of card slot design, therefore it is necessary to remove the card slot to proceed. If the first time failed, please repeat for several times.
Figure I

Figure II

2. Specific method for 12-digit code reading of the model with one-key start: directly read the 12-digit code with the MINI ND900 device close to the start button. Shown as below.

Note: When reading 12-digit code of the smart card, pls
remove the battery and then operate as above. After 12-digit code reading is successful, its display sequence is as follow: the last two digits in the second row + all digits in the first row, that is 63 4B 69 4D 82 52. Shown as below.

Procedures for Security Code Reading via OBDSTAR Key Master
DP are as follow:
1. Select vehicle model and the latest software version

2. Select “Read PinCode” option

3. Select “Read PinCode(46 Smart Card)”

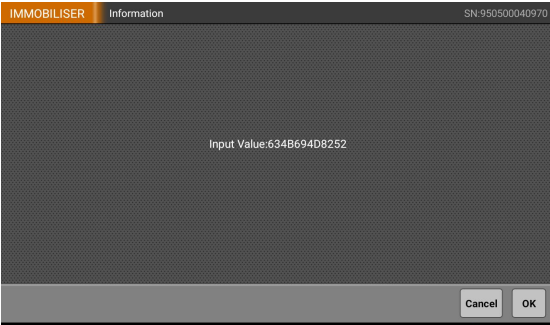

4. Input the 12-digit code acquired by MINI900

5. Make sure the input value is correct

6. Read the security code successfully

OBDSTAR ODOMaster Correct Mileage for Renault (2013- 2019)

Autonumen.com updates the newest OBDSTAR OdoMaster mileage adjustment car list for Renault.

Car make	Car model	Year	Functionality
RENAULT	Captur Block ABS	2017-	Mileage CalibrationWrite FLASH
RENAULT	Captur Unlock DASH	2017-	Mileage CalibrationWrite FLASH
RENAULT	Captur Block ABS	2013-	Mileage CalibrationWrite FLASH
RENAULT	Captur Unlock DASH	2013-	Mileage CalibrationWrite FLASH
RENAULT	Clio Block ABS	2017-	Mileage CalibrationWrite FLASH
RENAULT	Clio Unlock DASH	2017-	Mileage CalibrationWrite FLASH
RENAULT	Clio Block ABS	2013-	Mileage CalibrationWrite FLASH
RENAULT	Clio Unlock DASH	2013-	Mileage CalibrationWrite FLASH
RENAULT	Trafic IVBlock ABS	2017-	Mileage CalibrationWrite FLASH
RENAULT	Trafic IV Unlock DASH	2017-	Mileage CalibrationWrite FLASH
RENAULT	Trafic IV Block ABS	2013-	Mileage CalibrationWrite FLASH
RENAULT	Trafic IV Unlock DASH	2013-	Mileage CalibrationWrite FLASH
RENAULT	Twingo III		Mileage CalibrationWrite FLASH

Note: Please check if the car model is covered by ODO Master or not before purchasing.
If you want to learn more details, click here:https://www.autonumen.com/goods-7004-OBDSTAR-ODOMASTER-Odometer-Correction-Tool.html

Obdstar X300 DP Plus Mercedes W169 Odometer Correction: Good results!

Today, I will chip in words of the new test of Obdstar X300 DP Plus.
Purpose: change mileages for Mercedes W169

This is a dashboard from Mercedes-Benz Class A W169
Tested by professionals working for chinacardiags.com
Here you go….
Mercedes W169 odometer correction starts…
select the car and software:
BENZ – BENZ V30.29 – A CLASS – W169




Ignition on

The current km: 10015km

Enter a new mileage to adjust: 8000




W169 odometer correction is done!

Obdstar X300 DP Plus read the new km: 8015km

Success!

OBDSTAR DP plus, X300 Pro4, ODO Master Free Update

Obdstar release free update in November 2019, please update your OBDSTAR X300 DP plus
( for key programming and cluster calibration), x300 pro4 ( for key programming) and ODO Master (for cluster calibration).
Fiat [V32.32] Upgrade
Increased DELPHI PCF70F3556 type key programming and pre-coding function
Hyundai [V30.71] Upgrade
Asia Area:
Increased Verna 2016-2017 smart key system (China)
Increased GRAND SANTAFE (NC) remote control system (Korea)
Increased SONATA HYBRID 2015-2016 smart key system (Korea)
Australia Area:
Increased ATOS 2004-2013 IMMO system
Increased I20 2013-2016 IMMO system, remote control system, smart key system
Europe Area:
Increased ELANTRA 2007-2011 Petrol IMMO system type 2
North America Area:
Increased ELANTRA COUPE 2013-2016 IMMO system, remote control system, smart key system
Increased SANTAFE SPORT 2017 IMMO system, smart key system
Increased SANTAFE SPORT 2013-2016 IMMO system, remote control system, smart key system
Others:
Increased ACCENT 2011-2016 IMMO system, remote control system, smart key system
Increased CRETA(GS) 2015-2016 remote control system
Increased EON 2012-2016 IMMO system, remote control system
Increased GRAND I10 2014-2016 IMMO system, smart key system
Increased SANTAFE 2013-2016 IMMO system, remote control system
Increased SANTAFE SPORT 2014-2017 IMMO system, remote control system, smart key system
Increased XCENT 2014-2016IMMO system, smart key system
GM [V30.99] Upgrade
Increased Cadillac XT5 2019 cluster calibration  (for OBDSTAR ODO Master and obdstar dp plus)

SVCI 2020 FVDI AVDI ABRITES Commander Full Version IMMO Diagnostic Programming Tool with 21 Latest Software

The difference between SVCI 2020 and SVCI 2018
SVCI FVDI V2020 Hardware Difference:
1.SVCI 2020 has fewer button batteries than SVCI 2018.
2.SVCI 2020 does not need to be activated, it will not lock the machine, and the serial number will not be lost.

SVCI FVDI V2020 Software Difference:
SVCI 2020 has 19 more software than SVCI 2018:
1.ABRITES Commander for VAG V37.0，
2.ABRITES Commander for BMW V10.5，
3.ABRITES Commander for Mercedes V10.4
4.ABRITES Commander for Bikes V2.0
5.ABRITES Commander for Chrysler V3.4
6.ABRITES Commander for Daihatsu V1.4
7.ABRITES Commander for FIAT V7.6
8.ABRITES Commander for Ford V7.7
9.ABRITES Commander for Hyundai V4.4
10.ABRITES Commander for JLR V2.6
11.ABRITES Commander for Mitsubishi V3.7
12.ABRITES Commander for Nissan V5.7
13.ABRITES Commander for OPEL V7.5
14.ABRITES Commander for Porsche V7.1
15.ABRITES Commander for PSA V6.3
16.ABRITES Commander for Renault V7.4
17.ABRITES Commander for Suzuki V1.2
18.ABRITES Commander for Toyota V11.4
19.ABRITES Commander for Volvo V6.2

These 19 softwares are all the latest software.
They support basic functions such as fault diagnosis, clearing of fault codes, reading of data streams, and motion testing to new models of 2019.
Currently, special functions are not supported. Among them, Suzuki and Daihatsu contain special functions.
How to Install SVCI 2020 Software:
There is only one executable file on the CD-ROM.
Double-click “AbritesCommanderSetup.exe” to start the installation.
Do not plug the USB into the computer during the installation.
After the installation is complete, connect the USB to the computer.

How to use SVCI 2020 Quick Start Software
1.VCI 2020 Quick Launch Software has 42 shortcut icons. Left-click the icon to launch the corresponding software.
2.Compared to the quick launch of SVCI 2018, the activation dialog is not displayed after clicking the icon.
3.The last icon is the firmware upgrade program. Click it to start the firmware upgrade program.
4.You must be online to download the latest firmware program. After downloading, click Update to update the firmware program.
5.After clicking the icon, the dongle program icon will appear in the tray at the bottom right corner of the computer.
6.The dongle program cannot be exited while the software is running.

SVCI(FVDI) Hardware Comparison
	FVDI 2014	FVDI 2015	SVCI 2018	SVCI 2020
support softwares	AVDI 18 software	AVDI 18 software	AVDI 18 software+ VVDI2 software	AVDI 21 software+ VVDI2 software
Software version	One version	two version	two version	three version
Support the years of Vehicle manufacture	before 2014MY	before 2015MY	before 2015MY	before 2019MY
connection network	NO	YES	YES	NO
Online activate	NO	YES	YES	NO
useful life	forever	5 years	5 years	forever
stability	Strong	general	general	Strong
needs repaired	No	may be	may be	No

SVCI(FVDI) Software Comparison
	FVDI 2014	FVDI 2015	SVCI 2018	SVCI 2020
Jaguar/ Land Rover	x	x	x	v2.6
Suzuki	x	x	x	v1.2
Daihatsu	x	x	x	v1.4
VVDI	x	x	v1.2.2	v1.2.2
VW/Audi/ Skoda/Seat	v18.0	v18.0 v24.0	v18.0 v24.0	v18.0 v24.0 v37.0
BMW/Mini	v10.4	v10.4	v10.4	v10.4 v10.5
Mercedes_Benz/ Smart/MAYBACH	v5.11	v5.11 v7.0	v5.11 v7.0	v5.11 v7.0 v10.8
Renault/Dacia	v5.2	v5.2 v6.3	v5.2 v6.3	v5.2 v6.3 v7.4
Peugeot/Citroen	v5.10	v5.10 v6.7	v5.10 v6.7	v5.10 v6.7 v8.0
Fiat/Lancia/ Alfa/FCA	v5.1	v5.1 v5.7	v5.1 v5.7	v5.1 v5.7 v7.6
Opel/Vauxhall	v5.8	v5.8 v6.6	v5.8 v6.6	v5.8 v6.6 v7.5
Ford/Mazda	v4.9	v4.9	v4.9	v4.9 v7.7
Chrysler/Doge /Jeep	v3.3	v3.3	v3.3	v3.3 v3.4
Toyota/Lexus/ Scion	v9.0	v9.0	v9.0	v9.0 v11.7
Nissan/Infiniti	v4.3	v4.3	v4.3	v4.3 v5.7
Hyundai/KIA	v2.1	v2.1	v2.1	v2.1 v4.4
Volvo	v4.3	v4.3	v4.3	v4.3 v6.2
Mitsubishi Motors	v2.1	v2.1	v2.1	v2.1 v3.7
Porsche	v4.1	v4.1	v4.1	v4.1 v7.1
DAF	v1.0	v1.0	v1.0	v1.0
Bikes/ Snowmobiles/ Water scooters	v1.2	v1.2	v1.2	v1.2 v2.0
TagKeyTool	v6.2	v6.2	v6.2	v6.2

SVCI(FVDI) Supports the Years of Vehicle Models
	FVDI 2014	FVDI 2015	SVCI 2018	SVCI 2020
Jaguar/Land Rover	x	x	x	before 2016MY
Suzuki	x	x	x	before 2019MY
Daihatsu	x	x	x	before 2019MY
VW/Audi/Skoda/Seat	before 2014MY	before 2015MY	before 2015MY	before 2019MY
BMW/Mini	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Mercedes_Benz/Smart/ MAYBACH	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Renault/Dacia	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Peugeot/Citroen	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Fiat/Lancia/Alfa/FCA	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Opel/Vauxhall	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Ford/Mazda	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Chrysler/Doge/Jeep	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Toyota/Lexus/Scion	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Nissan/Infiniti	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Hyundai/KIA	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Volvo	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Mitsubishi Motors	before 2014MY	before 2015MY	before 2015MY	before 2019MY
Porsche	before 2012MY	before 2012MY	before 2012MY	before 2019MY
DAF	before 2012MY	before 2012MY	before 2012MY	before 2019MY
Bikes/Snowmobiles/ Water scooters	before 2012MY	before 2012MY	before 2012MY	before 2019MY
TagKeyTool	before 2015MY	before 2015MY	before 2015MY	before 2015MY
VVDI	before 2015MY	before 2015MY	before 2015MY	before 2015MY

SVCI FVDI V2020 Package includes:
1pc x SVCI FVDI 2020 Full Version IMMO Diagnostic Programming Tool with 21 Latest Software

Possible to get Piwis 3 program work with Piwis interface tester 2

This answer for the question whether Piwis 3 diagnostic program can work with Piwis interface tester II
It may be an interesting subject, I’m sure there is some information about this out here.
The Piwis 2 interface is a lot more robust piece of equipment, compared to the cheesy and flimsy looking and feeling interface produced by Actia for Piwis 3.
Originally designed for the VW ODIS system,  the VAS 6154 VCI is quite the service needy piece. [Breaks easily] not a hard comparison to make.
Porsche went cheap on this VCI for Piwis 3. [my humble opinion, way below Porsche standard!]
There is a service from Poland and Ukraine [If I remember correctly] that can make the Samtec based Piwis 2 VCI,  to work with Piwis 3, unfortunately their charges are just as much and frankly cost prohibitive as the New Piwis 3 VCI.  2-3-4 thousand  dollars for these VCIs is simply not reasonable for small  operators. They will come down in price just like the Chinese VCIs did for all manufacturers as the markets get saturated and folks are not buying them as eagerly as in the beginning of the Piwis 3 phad.
They will get as much money as the market bares. [as much as people are willing to pay]
Your more pointed answers will not come in this tread Ibi.
This is CarsFan’s money making tread, he will not volunteer any information, but if U start your own tread, U may be more likely to find out stuff.
Regards, Albert.
p.s. links
Porsche piwis 2 china clone:
https://www.autonumen.com/goods-5017-+Porsche+Piwis+Tester+II+V151+with+CF30+Laptop.html
Vxdiag Prosche piwis 3:
https://www.autonumen.com/goods-6826-VXDIAG-VCX-DoIP-Porsche-Tester-Piwis-III-with-Lenovo-T440P-Laptop.html

Autel MaxiSys MS906 vs MS906 TS vs MS 906 BT

Here is the comparison table of Autel Tools Autel MaxiSys series diagnostic tabloets, including MaxiSysMS906, MaxiSys MS906TS, MaxiSys MS906BT and MaxiSys.
MaxiSys MS906 / MaxiSys MS906 TS / MaxiSys MS906 BT / MaxiSys
